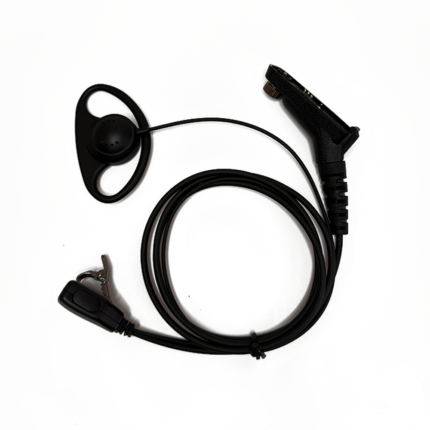

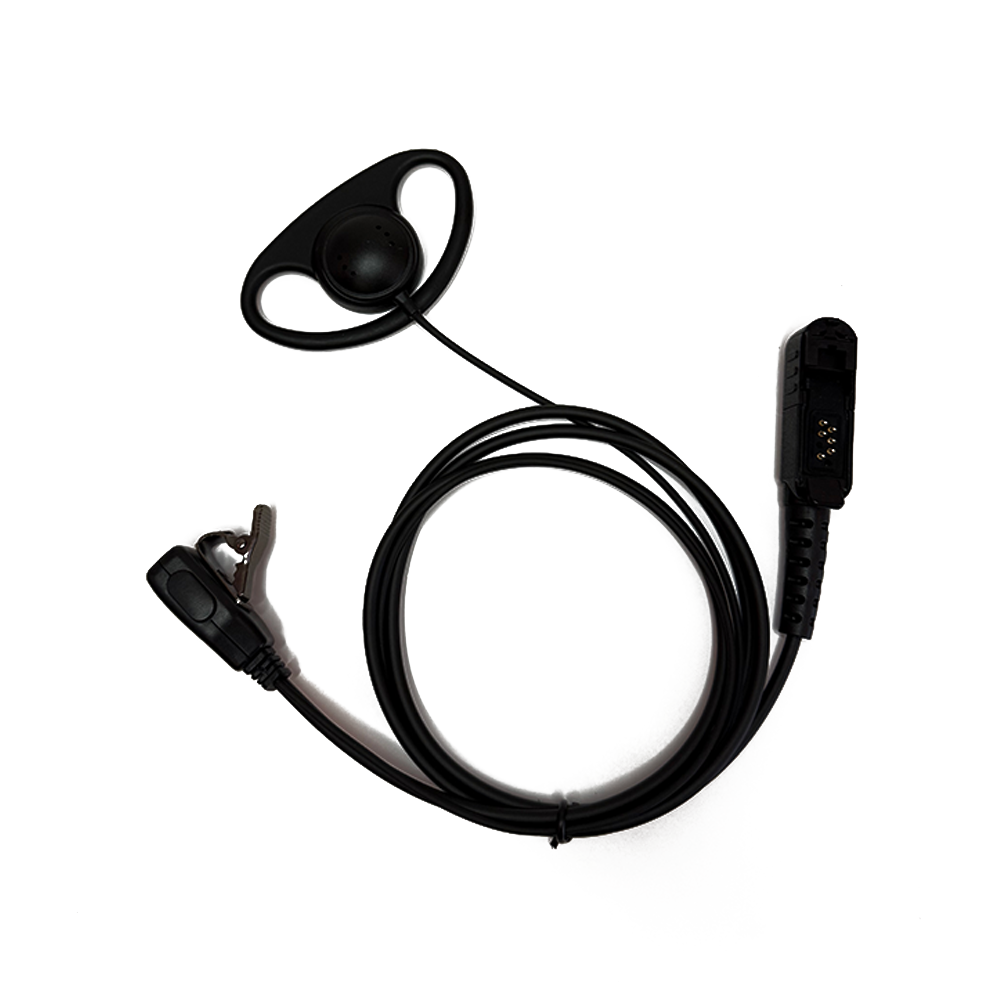

Motorola R5 D Shape Earpiece with Inline Mic/PTT for MOTOTRBO R5, XPR3300, XPR3300E, XPR3500, XPR3500E, DP3441E, DP2400, DP2600, MTP3100, MTP3250, MTP3500, MTP3550, XiR E8600i Radios
Speaker specification:
Speaker Dimension: Ф15mm
Nominal Impedance: 32ohm±15%
Sensitivity: 120±2dB
Rated Power: 30mW
Maximum Power: 50mW
Frequency Range: 420Hz-20kHz
Mic Dimension：Ф6mm
Sensitivity：(-50dB±2dB)
Directivity：Omni-Directional
Frequency: 100Hz-160kHz
Impedance: 2.2K
Operation voltage: 1V-10V
Compatible for: Motorola MOTOTRBO R5 XPR3300 XPR3300E XPR3500 XPR3500E DP3441E DP2400 DP2600 DP3441 MTP3100 MTP3250 MTP3500 MTP3550 DP3441E XIR E8600I Series radio
